Original price was: $15,000.00.$11,000.00Current price is: $11,000.00.

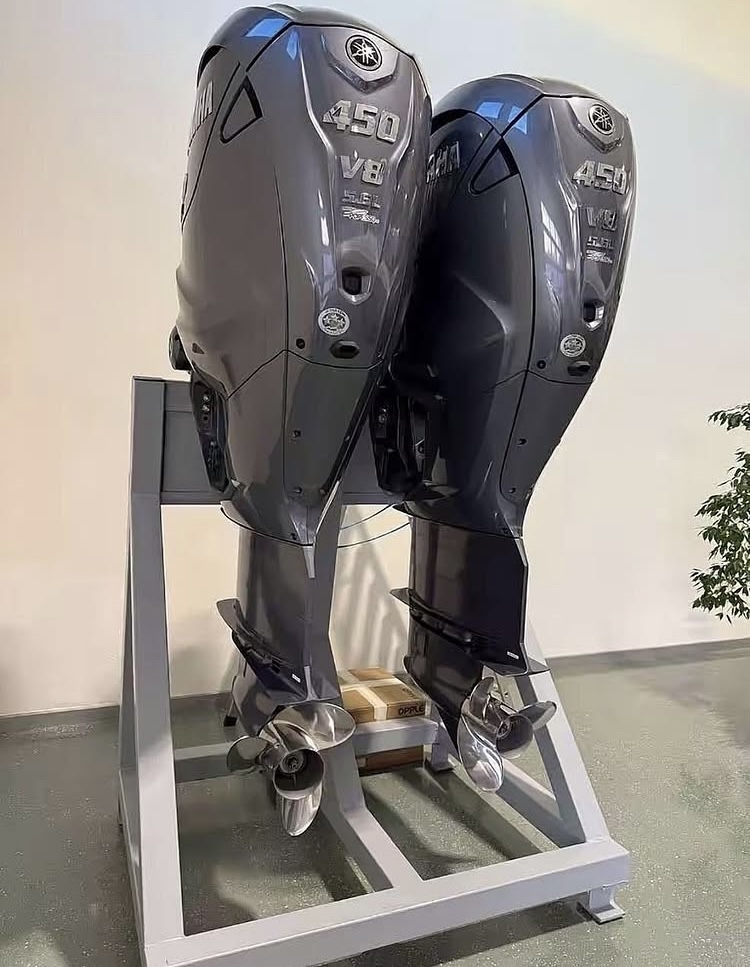

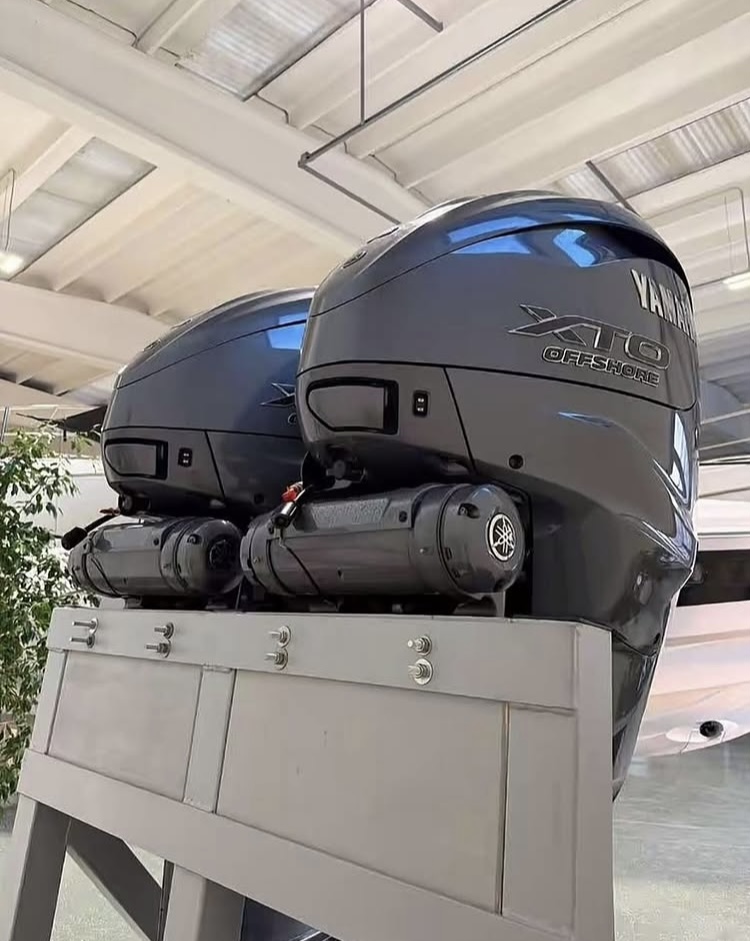

Twin Yamaha F450 XTO Offshore V8 outboards are built for large offshore boats that need substantial horsepower, high thrust, and the control required for demanding marine applications. This twin-engine setup combines two Yamaha XTO Offshore F450 four-stroke outboards, giving a boat a total rated output of 900 horsepower when both engines are operating at their rated output. The F450 uses Yamaha’s 5.6-liter naturally aspirated V8 platform with direct fuel injection, a 32-valve DOHC cylinder head, integrated electric steering, and a high-output charging system.
The Yamaha F450 XTO is designed around the requirements of large offshore vessels, sportfishing boats, center consoles, performance cruisers, and other high-horsepower applications. When installed as a pair, the engines provide a substantial propulsion package while retaining the rigging, digital-control, steering, and monitoring capabilities of the individual XTO platforms. Final installation should always be matched to the boat manufacturer’s transom, weight, horsepower, and rigging requirements.
| Specification | Twin F450 Configuration |
|---|---|
| Engine configuration | Two Yamaha F450 XTO Offshore outboards |
| Total rated horsepower | 900 HP combined |
| Engine type | 4-stroke, 60-degree V8, DOHC, 32 valves |
| Displacement | 5,559 cc / 5.6L per engine |
| Fuel system | Direct fuel injection |
| Full-throttle operating range | 5,000–6,000 RPM |
| Prop-shaft output | 450 HP per engine |
| Bore × stroke | 96.0 × 96.0 mm |
| Compression ratio | 12.3:1 |
| Recommended fuel | 89 octane gasoline |
| Gear ratio | 1.79:1 (25/14) |
| Steering | Integrated electric steering |
| Starting | Electric start |
| Lubrication | Wet sump |
| Shaft options | 25, 30, and 35 inches |
Each Yamaha F450 XTO uses a 5,559 cc 60-degree V8 with four valves per cylinder and dual overhead camshafts. Yamaha lists 450 horsepower at 6,000 RPM for the current XTO Offshore F450, with a full-throttle operating range of 5,000–6,000 RPM. With two engines, the rated output is 900 horsepower combined.
The large-displacement V8 is naturally aspirated and uses direct fuel injection. Yamaha’s XTO fuel system can operate at injection pressures of up to 2,900 PSI, supporting precise fuel atomization and the high-load operating conditions expected from a large offshore outboard. The 12.3:1 compression ratio and 89-octane recommended fuel specification are part of the F450’s factory configuration.
The F450 XTO’s direct-injection system places fuel directly into the combustion chamber rather than relying on a conventional port-injection arrangement. Yamaha combines this with its multi-stage fuel-pump architecture and high-pressure injection system to support the engine’s large-displacement V8 output.

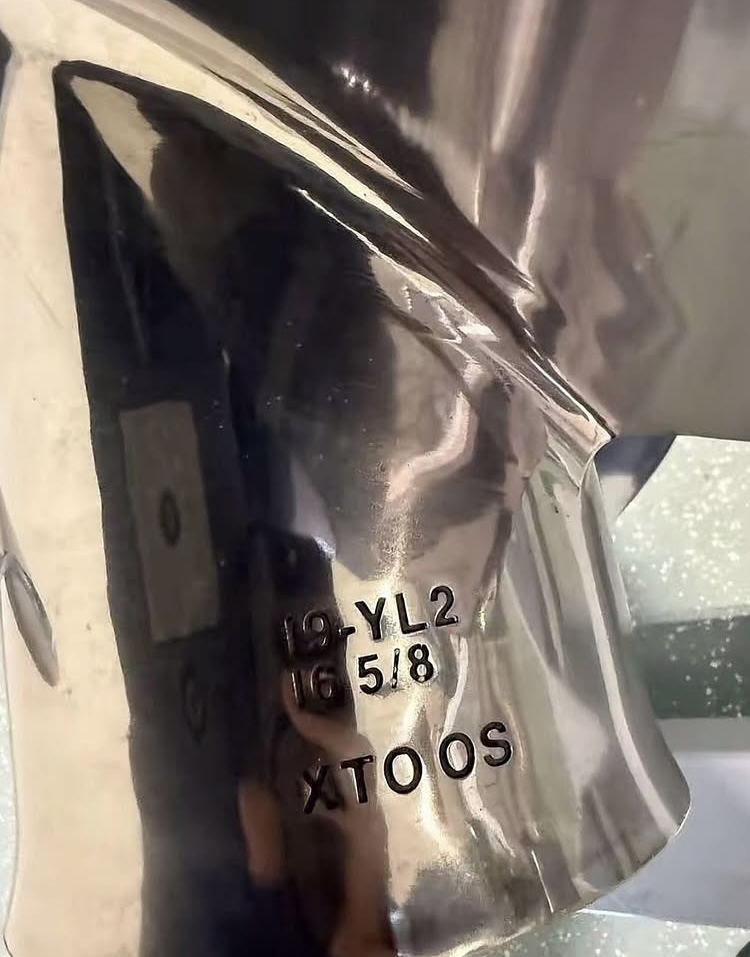

The XTO platform also uses dedicated XTO propellers designed around the engine’s high torque output. Propeller selection remains application-specific: boat size, hull design, gearcase configuration, target RPM, loading, and intended use all affect the appropriate propeller choice.
Integrated electric steering is one of the defining features of the F450 XTO Offshore. The steering system is built into the outboard rather than requiring the same type of external hydraulic steering arrangement used with many conventional high-horsepower engines. For a twin installation, correct rigging and synchronization are essential to achieve the intended steering response.
The F450 is compatible with Yamaha digital controls and the Helm Master EX boat-control ecosystem. Depending on the boat and rigging package, compatible displays and controls can provide engine information, steering and maneuvering functions, and other integrated vessel-control features.
The F450 XTO includes Yamaha’s Phase Angle Control charging system and a high-output alternator. Yamaha lists up to 102 amps gross maximum alternator output for the current F450, with output varying according to operating conditions. A twin-engine installation can therefore provide substantial charging capability for a properly designed onboard electrical system.
This can be particularly useful on offshore boats carrying multiple navigation displays, radar, communications equipment, lighting, livewell systems, refrigeration, pumps, and other electrical loads. The boat’s battery banks, cabling, charging architecture, and accessory loads still need to be engineered as a complete system.
The Yamaha F450 XTO is intended for large, high-horsepower offshore applications. A twin 450 setup is especially relevant to large center consoles, sportfishing boats, offshore cruisers, and other vessels engineered for multiple high-output outboards.
A 900 HP twin-outboard package is not simply a matter of mounting two engines to any boat. Before purchasing or installing the engines, verify that the hull and transom are rated for the combined horsepower and the substantial weight of the engines. Yamaha lists F450 weights from approximately 963 to 1,010 pounds depending on shaft configuration, before accounting for installation-specific equipment and other rigging components.
Transom height, engine spacing, steering geometry, propeller selection, fuel capacity, battery capacity, controls, displays, and electrical architecture should all be considered together. The boat manufacturer’s maximum horsepower and weight ratings should take priority over generic engine compatibility assumptions.
Yamaha specifies 89-octane gasoline for the F450 XTO and a maximum ethanol blend of 10 percent. Yamaha also specifies a 10-micron fuel/water-separating filter for the external fuel-filtration system. Following the manufacturer’s fuel-storage, filtration, lubrication, cooling, and service requirements is particularly important for offshore engines where reliability is critical.
The F450 uses a wet-sump lubrication system and Yamaha lists approximately 7.8 liters of engine-oil capacity for the applicable configuration. Always use the owner’s manual and the exact engine configuration to confirm service quantities, lubricants, filters, inspection intervals, and maintenance procedures before servicing.
If you are evaluating this twin Yamaha F450 XTO package for a new boat or repower, confirm the exact model designation, shaft length, rigging components, control system, propellers, engine hours if applicable, service history, and included accessories. For used engines, inspect the lower units, propellers, steering system, mounting hardware, wiring, corrosion protection, cooling passages, diagnostic history, and compression or other appropriate mechanical condition indicators.
For a repower, compare the complete installed package rather than engine horsepower alone. The correct decision depends on the vessel’s maximum rated horsepower, transom dimensions, target operating RPM, weight distribution, fuel system, electrical loads, and intended operating environment.
The F450 combines a large 5.6-liter V8, direct fuel injection, high-pressure fuel delivery, integrated electric steering, high-output charging, and dedicated XTO propulsion technology in a package intended for demanding offshore boats. A twin installation expands that capability to a 900 HP rated propulsion system while providing the redundancy inherent in a two-engine arrangement.
For buyers comparing high-horsepower outboard options, the important specifications are not limited to horsepower. Displacement, engine weight, shaft length, gear ratio, steering technology, charging output, fuel requirements, rigging compatibility, and the boat’s approved engine capacity all need to be evaluated before installation.
Two Yamaha F450 XTO Offshore engines have a combined rated output of 900 horsepower, based on 450 horsepower per engine.
The F450 XTO is a 5.6-liter, 60-degree V8 four-stroke outboard with DOHC, 32 valves, and direct fuel injection.
Each F450 XTO has a displacement of 5,559 cc, commonly described as 5.6 liters.
Yamaha specifies 89-octane gasoline for the F450 XTO and lists a maximum ethanol blend of 10 percent.
Yamaha lists a full-throttle operating range of 5,000–6,000 RPM for the F450 XTO Offshore.
Yamaha lists F450 weights of approximately 963, 988, or 1,010 pounds depending on shaft configuration. Actual installed package weight will be higher after rigging, controls, propellers, and other equipment are included.
Yes. The F450 XTO is available for multi-engine applications, and Yamaha provides compatible digital controls and Helm Master EX integration. The boat must be specifically designed and rated for the combined horsepower and weight.
Twin F450 XTO engines are intended for large, high-horsepower vessels such as offshore center consoles, sportfishing boats, and other boats engineered for twin 450 HP outboards. The boat manufacturer’s specifications should be checked before installation.
