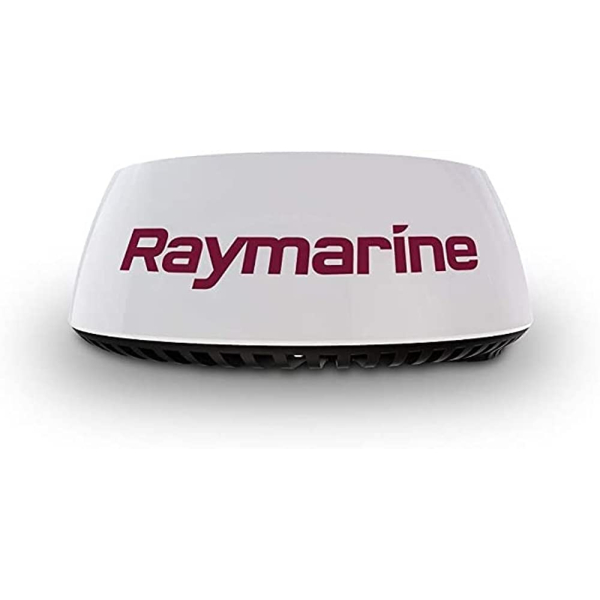

Raymarine Quantum is a compact, high-performance solid-state marine radar featuring CHIRP pulse compression technology. Setting a new standard for radar imaging, Quantum delivers superior radar target recognition on both long and extremely short ranges. Integrated Wi-Fi and thin cabling simplify installation plus Quantum’s energy-efficient and lightweight design provides safe radiated emissions and substantially reduced power consumption.
Original price was: $1,650.00.$1,500.00Current price is: $1,500.00.

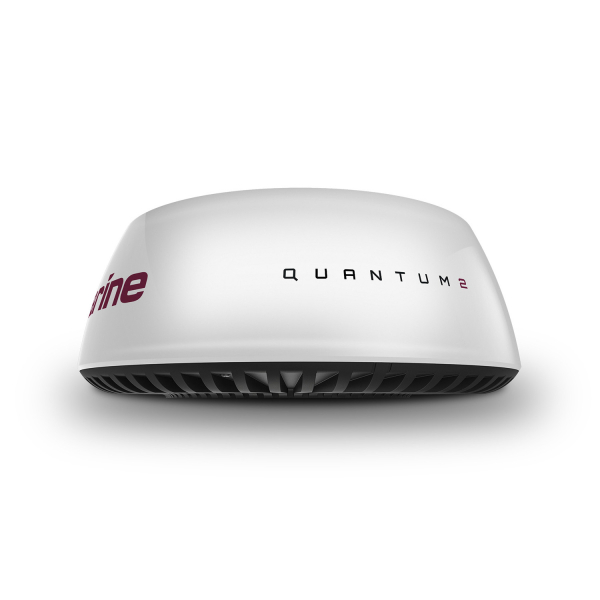

The Raymarine QUANTUM 2 Q24D 18-inch Doppler Radar is a compact solid-state marine radar designed for sailboats, RIBs, and smaller powerboats. It combines short-range target detection with a compact scanner, low electrical consumption, and installation flexibility. The supplied specifications list an 18-foot (6-metre) minimum range, 12 V or 24 V DC nominal supply, IPX6 waterproofing, and a 5.6 kg scanner weight.
| Specification | Details |
|---|---|
| Radar model | QUANTUM 2 Q24D |
| Radar type | Doppler solid-state marine radar |
| Scanner size | 18-inch class |
| Dimensions | 541.0 mm diameter × 209.5 mm height |
| Weight | 5.6 kg |
| Nominal supply voltage | 12 V DC or 24 V DC |
| Operating voltage range | 10.8–31.2 V DC |
| Transmit power consumption | 17 W maximum |
| Standby power consumption | 7 W |
| Wi-Fi sleep consumption | 2 W |
| Minimum range | 18 ft (6 m) |
| Waterproofing | IPX6 |
| Operating temperature | -10°C to 55°C |
| Storage temperature | -25°C to 70°C |
| Humidity | Up to 95% at 35°C |
| Maximum wind speed | 100 knots |
The Q24D is designed to provide radar awareness from close range, with the supplied product specifications identifying an 18-foot (6-metre) minimum range. This is useful when radar coverage needs to include nearby targets as well as targets farther from the vessel. As with any marine radar, actual detection depends on installation, target characteristics, vessel conditions, weather, and the surrounding environment.
The 5.6 kg scanner has a listed diameter of 541.0 mm and height of 209.5 mm. The product information states that the Quantum 2 can utilize existing Raymarine scanner fixing points, which can simplify compatible upgrades. The scanner can be supplied without power or data cabling, or with 10-metre and 15-metre cabling options, depending on the configuration selected.
Before installation, confirm the required cable configuration, mounting pattern, display compatibility, power supply, and available installation space. The stated operating voltage range is 10.8–31.2 V DC, with either 12 V DC or 24 V DC listed as the nominal supply.
Power consumption is one of the notable specifications of the QUANTUM 2 Q24D. The supplied data lists a maximum transmit consumption of 17 W and standby consumption of 7 W. Sleep mode consumption is listed at 2 W for radars connected via Wi-Fi. These figures can be relevant when planning the electrical system of smaller boats or vessels where battery capacity and power management are important.
The Q24D is specified with IPX6 waterproofing and an operating temperature range of -10°C to 55°C. Storage temperature is listed as -25°C to 70°C, with the scanner to be stored upright and its underside vents kept unobstructed. Humidity is specified up to 95% at 35°C, while maximum wind speed is listed as 100 knots.
The Raymarine QUANTUM 2 Q24D is intended for a range of smaller-vessel applications, including sailboats, RIBs, and smaller powerboats. Its compact physical design, low power consumption, short-range detection capability, and flexible installation options make it suitable for vessels where space and electrical requirements need to be considered carefully.
When evaluating this Doppler marine radar, consider your vessel type, mounting location, existing Raymarine equipment, power system, cable requirements, and the type of radar coverage you need. Confirm all equipment and installation compatibility before purchase, particularly when replacing an existing scanner or using existing mounting points and cabling.
For more marine radar equipment, browse our marine radar collection. For product or order assistance, visit our contact page.
The Q24D is an 18-inch class Doppler marine radar designed for applications including sailboats, RIBs, and smaller powerboats.
The supplied specifications list a minimum range of 18 feet, or approximately 6 metres.
The scanner has a listed weight of 5.6 kg.
The radar supports either 12 V DC or 24 V DC nominal supply, with an operating voltage range of 10.8–31.2 V DC.
Maximum transmit consumption is 17 W, standby consumption is 7 W, and sleep consumption is 2 W when connected via Wi-Fi.
Yes. The supplied specifications list an IPX6 waterproof rating for the radar scanner.
