Original price was: $3,199.00.$3,000.00Current price is: $3,000.00.

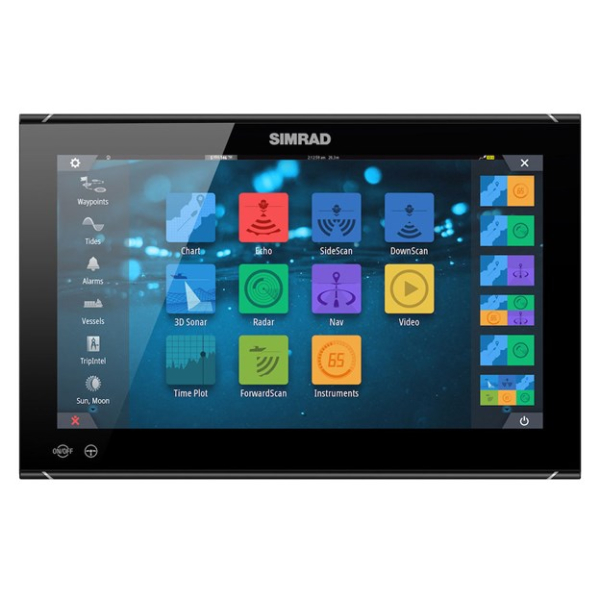

The Simrad NSOevo3S 16 Inch System Pack is a high-performance marine multifunction display system designed for integrated navigation and helm control. It combines a 16-inch Full HD touchscreen with an iMX 8 six-core processor, wireless connectivity and support for Ethernet, NMEA 2000 and J1939 marine networks. The system is built for boat owners who want a modern glass-helm interface that can connect navigation, radar, sonar, autopilot and other compatible marine electronics.
The NSOevo3S 16 uses a 16-inch Full HD display designed for clear viewing at the helm. The platform is available in different screen sizes, while this system pack is specifically configured around the 16-inch model.
The wide viewing design helps maintain visibility from different positions around the helm, including when the operator is wearing polarized sunglasses. The display can show charts, sonar, radar, engine information and other connected system data in customizable split-screen layouts.
An integrated iMX 8 six-core processor powers the NSOevo3S display. The processor is designed to provide responsive operation across charting, system menus and connected marine applications.
For a multi-function helm, processor performance matters because the display may need to handle several information sources simultaneously. The NSOevo3S architecture is designed around this type of integrated marine electronics environment.
The NSOevo3S provides touchscreen control of connected Simrad systems. The interface can be used to work with navigation information and compatible radar, sonar and autopilot equipment from a central display.
Custom screen layouts can be configured around different activities. A helm operator can use different arrangements for navigation, fishing, cruising or system monitoring instead of relying on a single fixed screen layout.

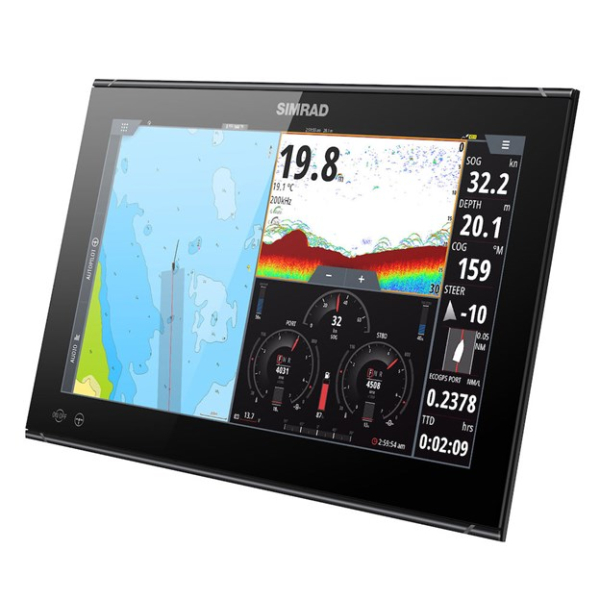

The display supports layouts with up to six panels. This allows multiple sources of marine information to remain visible at the same time. For example, a networked installation can be configured to show chart information alongside radar, sonar, engine or other compatible system data.
The exact information available in each panel depends on the connected equipment and the functions supported by the installed Simrad system.
The NSOevo3S is designed to serve as a central marine navigation display within a connected helm. The system can work with compatible chartplotting equipment and networked navigation data, allowing operators to view and manage navigation information from the multifunction display.
The product listing identifies a chart card reader as part of the system pack. The exact chart coverage and chart products available depend on the installed chart card and the region in which the vessel operates.
The system pack includes a GPS antenna, providing the positioning hardware required for a networked marine navigation installation. GPS data can be used by compatible navigation functions and shared with supported marine equipment across the vessel’s network.
When installing the GPS antenna, choose a suitable position with a clear view of the sky and follow the manufacturer’s installation requirements for the antenna and connected network equipment.
The NSOevo3S is designed for extensive vessel-wide integration. Its connectivity options include Ethernet, NMEA 2000 and J1939, allowing it to communicate with compatible marine equipment and third-party systems.
A networked installation can connect multiple displays and marine devices so information can be shared around the vessel. Depending on the connected equipment, this can include radar, sonar, autopilot, navigation data and other system information.
The NSOevo3S can serve as a central interface for compatible Simrad radar, sonar and autopilot equipment. The touchscreen is designed to provide access to connected systems without requiring separate controls for every device.
This integration is useful when building a modern glass-helm system where navigation, radar and sonar information need to be accessible from one display. The required radar scanner, sonar module, transducer or autopilot components are separate considerations and should be confirmed for the intended configuration.
Built-in wireless connectivity allows the NSOevo3S to connect with compatible mobile devices and internet hotspots. The product information also identifies wireless software upgrades as part of the platform’s connectivity features.
Wireless access can simplify software maintenance when a suitable internet connection is available. Actual update requirements and compatible mobile functions depend on the installed software and connected devices.
The NSOevo3S uses a low-profile glass-helm design intended to complement modern marine consoles. The display can be integrated into a larger helm alongside other displays and networked equipment.
Installation planning should account for the 16-inch display, power wiring, Ethernet, NMEA 2000, J1939 and any additional network connections. Leave suitable service access around the display so cables and connectors can be maintained after installation.

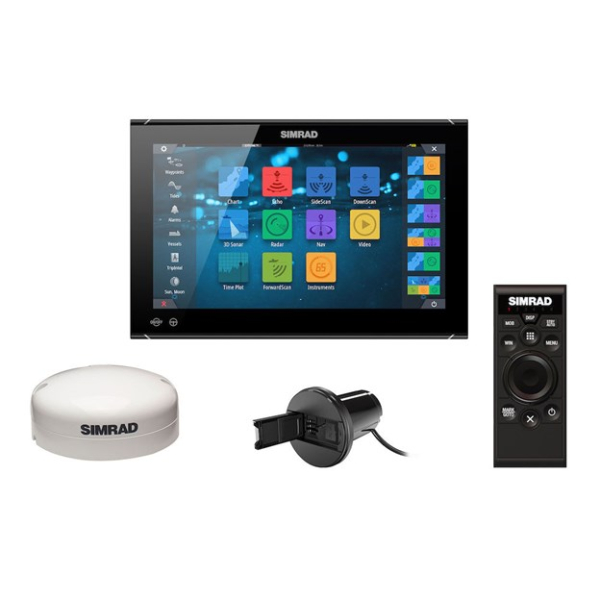

The current product listing identifies the following key components as included in the system pack:
Additional radar, sonar, autopilot, transducers, charts and other marine electronics are not identified as included in the supplied product information and should be confirmed separately when planning a complete installation.
| Feature | Simrad NSOevo3S 16 |
|---|---|
| Display size | 16 inches |
| Display type | Full HD widescreen touchscreen |
| Processor | iMX 8 integrated six-core processor |
| Split-screen capability | Up to six panels |
| Networking | Ethernet, NMEA 2000 and J1939 |
| Wireless connectivity | Built-in wireless |
| System integration | Compatible radar, sonar, autopilot and third-party marine technologies |
| Included navigation hardware | GPS antenna and chart card reader |
The NSOevo3S 16 is suited to boat owners who want a centralized marine electronics display for a sophisticated helm. Its large touchscreen, multi-panel layout, processing platform and network connectivity make it appropriate for vessels where navigation and several connected systems need to be managed from one location.
It can be used as part of a cruising, offshore, fishing or yacht electronics installation, provided the connected radar, sonar, autopilot and other equipment is compatible with the NSOevo3S platform.
If you are comparing the NSOevo3S with other marine GPS systems, consider display size, networking requirements, chart support, sonar and radar compatibility, mounting configuration and the other electronics already installed on your boat.
For questions about availability, compatibility or installation requirements, contact the Performance Engines team before ordering.
This system pack is built around a 16-inch NSOevo3S Full HD marine display. Simrad also produces the NSOevo3S platform in other display sizes, but this listing specifically identifies the 16-inch system pack.
The NSOevo3S uses an integrated iMX 8 six-core processor. The processing platform is designed for responsive operation across navigation, connected marine electronics and customizable display layouts.
Yes. The product is designed to integrate with compatible Simrad radar and sonar systems. The display can act as a central interface for connected marine electronics, while the required radar, sonar modules and transducers must be selected separately for the intended system.
Yes. The product listing identifies a GPS antenna as one of the included system-pack components, along with the keypad and chart card reader.
The product information states that the NSOevo3S supports split-screen layouts with up to six panels. The available panel functions depend on the connected marine equipment.
Yes. The platform provides Ethernet, NMEA 2000 and J1939 networking, allowing compatible marine electronics and supported third-party technologies to be integrated into a connected vessel system.
