Lowrance Elite FS 9 with ActiveTarget Live Sonar No Transducer

Sale!

Lowrance Elite FS 9 with ActiveTarget Live Sonar No Transducer

The new Elite Fishing System (FS) gives you access to the full line-up of Lowrance fishfinding tools – including ActiveTarget live sonar, Active Imaging™ and preloaded C-MAP Contour charts – to help you make the most of your time on the water. With compatibility across a wide range of charting options, Elite FS gives you all the tools you need to find and catch more fish.

Original price was: $1,025.00.Current price is: $1,000.00.

Description

Lowrance Elite FS 9 with ActiveTarget Live Sonar No Transducer

The Lowrance Elite FS 9 with ActiveTarget Live Sonar combines a 9-inch Elite Fishing System display with advanced fishfinding, live sonar and marine navigation capabilities. This product is listed as the no-transducer version, while the current product information also identifies ActiveTarget Live Sonar as part of the package. That makes it important to confirm the exact sonar hardware included with the order before installation. The Elite FS platform is designed to bring chartplotting, sonar, networking and touchscreen control together in a compact marine display.

Key Features

  • 9-inch Lowrance Elite FS multifunction display
  • ActiveTarget Live Sonar support
  • ActiveTarget 2 Live Sonar ready on current Elite FS platforms
  • Active Imaging 3-in-1 ready
  • Active Imaging HD compatibility with the required S3100 Sonar Module
  • FishReveal technology combining CHIRP sonar and DownScan Imaging
  • High-resolution multi-touch touchscreen
  • Preloaded mapping with compatibility for C-MAP, Navionics and other chart options
  • C-MAP Easy Routing and Navionics Autorouting capability
  • C-MAP Genesis Live onscreen mapping
  • Integrated wireless connectivity
  • NMEA 2000 and Ethernet connectivity
  • Touchscreen control for compatible Power-Pole anchors and Ghost trolling motors

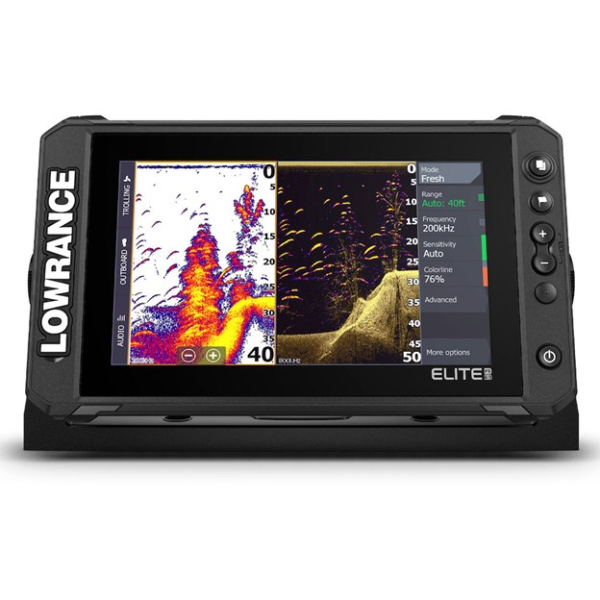

Elite FS 9 Display and Touchscreen

The Elite FS 9 provides a 9-inch multi-touch display for controlling navigation, sonar, charting and connected marine equipment. Lowrance specifies an 800 x 480 display resolution with more than 1,200 nits of brightness, helping the screen remain readable in bright outdoor conditions. The display supports multi-touch controls for zooming, navigating menus, managing waypoints and switching between sonar and chart views.

The unit is designed for gimbal-bracket or dash flush mounting. Its compact display format makes it suitable for helm installations where available panel space is limited but a larger screen than a small portable fishfinder is required.

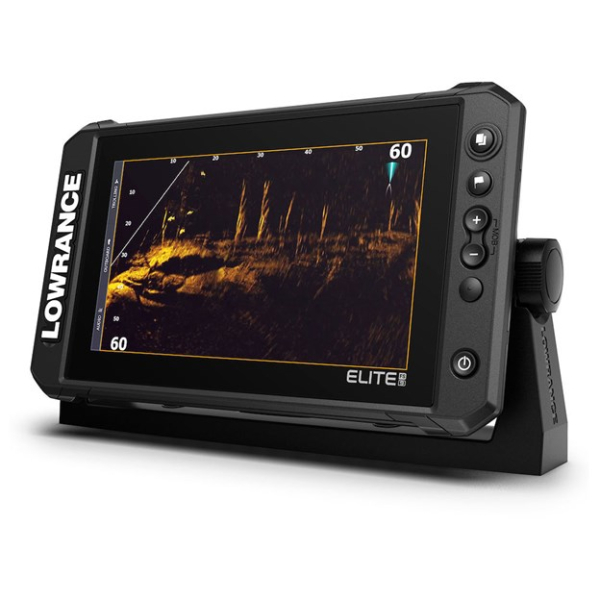

ActiveTarget Live Sonar

ActiveTarget Live Sonar is a central feature of this Elite FS configuration. Live sonar provides real-time views that can help anglers observe fish movement and activity around structure. Lowrance’s Elite FS platform supports forward, down and scout-style live sonar views when compatible ActiveTarget equipment is connected.

The product listing identifies ActiveTarget Live Sonar in the package information while the product title specifies No Transducer. Because those descriptions refer to different parts of the system, buyers should verify the exact package contents and required transducer or sonar components before installation.

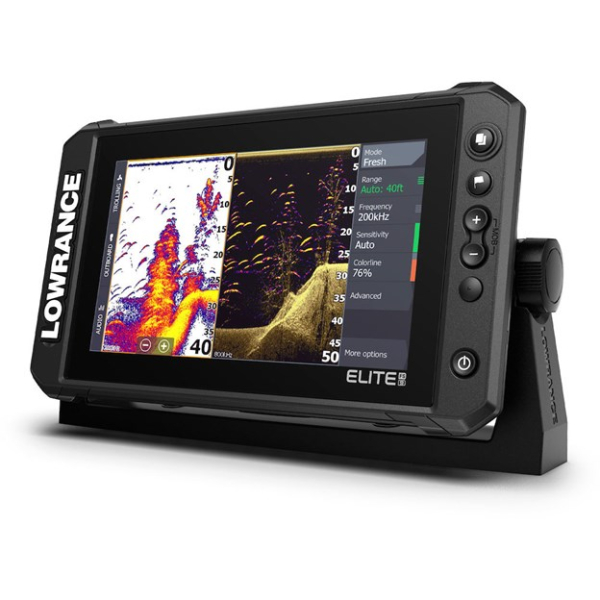

Active Imaging, CHIRP and FishReveal

Elite FS supports Lowrance’s Active Imaging technologies as well as CHIRP sonar, SideScan and DownScan Imaging. FishReveal combines fishfinding information with DownScan imagery to make fish easier to identify in relation to structure and cover.

The current Lowrance specification also lists compatibility with Active Imaging HD. Active Imaging HD requires the S3100 Sonar Module, so the module and compatible transducer should be considered when planning a higher-resolution imaging system. The Elite FS platform also supports other compatible sonar technologies, giving boat owners flexibility when building a larger electronics package.

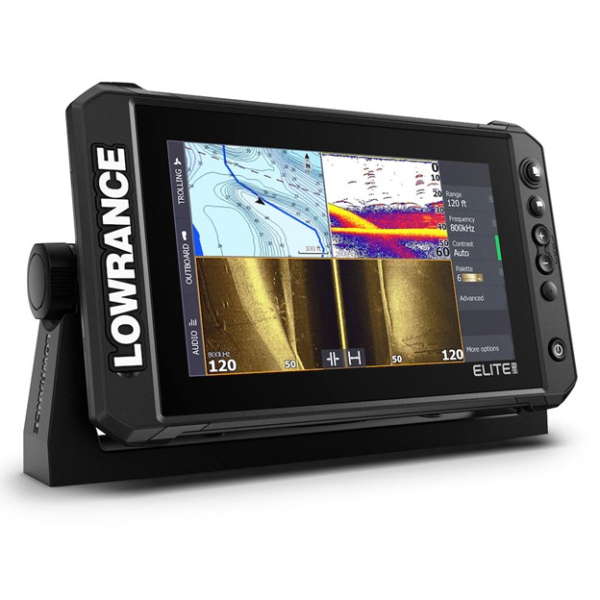

Marine GPS, Chartplotting and Mapping

The Elite FS 9 is more than a fishfinder. It functions as a marine multifunction display with integrated GPS and chartplotting capabilities. The platform supports C-MAP and Navionics chart options, along with C-MAP Genesis Live onscreen mapping.

The current Lowrance specification lists a 10 Hz internal high-sensitivity GPS receiver with WAAS, EGNOS and MSAS support. Depending on the chart package and region, the display can be used for route planning, waypoint management, track recording and navigation around fishing locations.

Connectivity and Marine Networking

For installations that use multiple marine electronics, the Elite FS 9 provides several connectivity options. The unit includes integrated wireless connectivity, Ethernet and NMEA 2000 connectivity. Lowrance specifies one 100 Mbit Ethernet port and a Micro-C NMEA 2000 connection.

This connectivity allows the display to form part of a broader marine electronics network. Compatible equipment can include sonar modules, GPS and navigation devices, trolling motors, Power-Pole anchors and other NMEA 2000 or Ethernet-connected equipment. Compatibility should always be confirmed against the specific equipment being installed.

Technical Specifications

Specification Lowrance Elite FS 9
Display size 9 inches
Display resolution 800 x 480
Screen brightness More than 1,200 nits
Touchscreen Multi-touch
GPS 10 Hz internal high-sensitivity GPS
GPS correction DGPS, WAAS, MSAS and EGNOS
GPS receiver channels 16
Ethernet 1 x 100 Mbit port
Wireless Integrated 802.11b/g/n Wi-Fi
Bluetooth Integrated Bluetooth 4.0
NMEA 2000 1 x Micro-C connection
SD card 1 microSD card up to 32 GB
Power supply 12 V DC, 10.8–17 V DC
Typical/max power consumption 2.0 A at 13 VDC with full backlight
Recommended fuse 3 A
Waterproof rating IPX7 with card door closed
Operating temperature 5°F to 131°F (-15°C to 55°C)
Storage temperature 4°F to 140°F (-20°C to 60°C)
Weight 2.7 lb (1.2 kg)
Mounting Gimbal bracket or dash flush mount
Waypoints Up to 3,000
Routes Up to 100
Trails 100 trails with up to 10,000 points per trail

Sonar and Chart Compatibility

Elite FS supports a broad range of sonar and charting equipment. The Lowrance specification identifies integrated CHIRP, Broadband, Active Imaging DownScan and Active Imaging SideScan compatibility, together with support for compatible systems such as SonarHub, StructureScan, StructureScan 3D, LiveSight and ActiveTarget.

Chart compatibility includes C-MAP, C-MAP Genesis, C-MAP Precision Contour HD and supported Navionics products. The exact chart coverage available depends on the selected chart product and geographic region.

Installation Considerations

Before installing the Elite FS 9, confirm the available dash or mounting area, power supply, networking requirements and sonar configuration. The unit requires a suitable 12 V DC supply and Lowrance specifies a 3 A recommended fuse. Leave sufficient room for cable routing and access to the microSD card slot and network connections.

If you intend to use ActiveTarget, Active Imaging or another sonar system, verify the transducer, module, Ethernet and power requirements before completing the installation. The current Lowrance documentation specifically notes that Active Imaging HD requires the S3100 Sonar Module.

Who Is the Lowrance Elite FS 9 For?

The Elite FS 9 is suited to anglers and boat owners who want a combined marine GPS, chartplotter and fishfinder rather than separate displays for navigation and sonar. Its 9-inch touchscreen, live sonar compatibility, mapping capabilities and networking connections make it useful for freshwater fishing, coastal boating and multi-device helm installations.

It is particularly useful for installations where detailed fishfinding and navigation need to be available from the same display. The system can also be expanded with compatible sonar, mapping, networking and trolling-motor equipment as the boat’s electronics requirements grow.

What Is Included?

The product information for this listing identifies the following package contents:

  • ActiveTarget Live Sonar
  • Lowrance Elite FS 9 display, no transducer
  • Product package identified as LBL, ELITE FS 9 NO XD US – AT BUNDLE
  • Packaging box

Because the product title specifies “No Transducer” while the package information identifies ActiveTarget Live Sonar, confirm the exact physical components supplied with the order before purchase or installation.

Why Buy from Performance Engines?

Performance Engines provides marine electronics and navigation equipment for boat owners looking to upgrade or build their onboard systems. If you are comparing this Lowrance unit with other marine GPS systems, review display size, sonar compatibility, chart support, networking requirements and the equipment already installed on your boat.

For questions about product availability, compatibility or installation requirements, contact the Performance Engines team before ordering.

Frequently Asked Questions

Does the Lowrance Elite FS 9 include a transducer?

The product title identifies this configuration as “No Transducer.” However, the product information also lists ActiveTarget Live Sonar in the package contents. Confirm the exact transducer and sonar hardware included with the specific order before installation.

Does the Elite FS 9 support ActiveTarget Live Sonar?

Yes. The product is listed with ActiveTarget Live Sonar, and the Elite FS platform supports compatible ActiveTarget live sonar systems for real-time views of fish and structure.

What screen size does the Lowrance Elite FS 9 have?

The Elite FS 9 uses a 9-inch multi-touch display with an 800 x 480 resolution. Lowrance specifies brightness above 1,200 nits for the current specification.

Can the Elite FS 9 be used as a marine GPS and chartplotter?

Yes. The Elite FS 9 includes an internal 10 Hz GPS receiver and supports marine charting from compatible C-MAP, Navionics and other mapping sources.

Does the Elite FS 9 support NMEA 2000 and Ethernet?

Yes. The current specification lists one Micro-C NMEA 2000 connection and one 100 Mbit Ethernet port, allowing the display to connect with compatible marine electronics and networked equipment.

What power supply does the Elite FS 9 require?

Lowrance specifies a 12 V DC supply with an operating range of 10.8–17 VDC. The specification lists 2.0 A at 13 VDC with the backlight at full brightness and recommends a 3 A fuse.
