Original price was: $2,500.00.$2,000.00Current price is: $2,000.00.

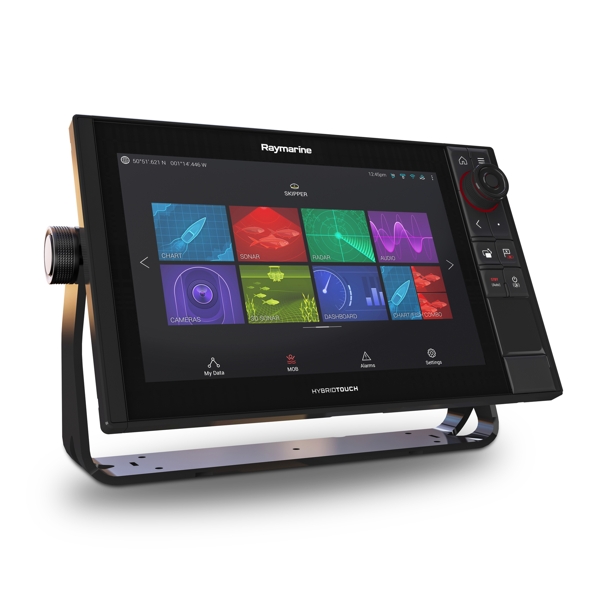

The Raymarine Axiom Pro 12 RVX Chartplotter is a 12.1-inch marine multifunction display designed for navigation, chartplotting and connected marine electronics. The supplied product specifications identify an IPS display, dual RayNet Ethernet ports, NMEA 2000 and NMEA 0183 connectivity, dual MicroSDXC card slots, Bluetooth, Wi-Fi and a dedicated RealVision transducer connection.
The Axiom Pro 12 RVX is designed for helm installations where a marine chartplotter needs to connect with navigation equipment, networked displays and compatible sonar hardware. Its 12.1-inch display provides a larger viewing area while retaining multiple mounting options.
The Axiom Pro 12 specification supplied for this product identifies a 12.1-inch IPS display with a 16:9 aspect ratio and 1280 x 800 WXGA resolution.
IPS technology is designed to provide consistent viewing across a wide range of helm positions. The supplied specification lists an 88-degree viewing angle from the top, bottom, left and right, together with 24-bit color depth.
The illumination specification for the Axiom Pro 12 is listed as 1200 nits / 1200 cd/m². This high-brightness display configuration is intended for marine helm use where chart and system information needs to remain visible in changing lighting conditions.
The Axiom Pro 12 RVX is a marine chartplotter and multifunction display intended to provide a central interface for navigation equipment. Its network connections allow the display to become part of a broader marine electronics installation.
The product can be installed as part of a helm system where chartplotting information is combined with compatible sonar, networked marine equipment and other connected devices. The exact navigation features available depend on the installed software, charts and connected equipment.
Two RayNet Ethernet ports are provided, with the supplied specification identifying 10/100/1000 Mbits/s network speeds.
Dual Ethernet connections provide flexibility when integrating the Axiom Pro 12 into a larger Raymarine network. Network planning should account for the connected equipment, cable routing, power requirements and the physical layout of the helm.
The Axiom Pro 12 includes a NMEA 2000 DeviceNet connector for connection to compatible marine electronics networks. The supplied specifications also identify two NMEA 0183 ports.
NMEA 0183 Port 1 supports input and output at 4,800 or 38,400 baud, while Port 2 is specified as input only at 4,800 or 38,400 baud. These interfaces can be used as part of a compatible marine electronics installation.
The Axiom Pro 12 RVX includes a 25-pin RealVision type transducer connector. The supplied product information also specifies that an A80490 adaptor cable is required for CPT-S style transducers.
This dedicated transducer connection is an important consideration when planning a sonar installation. Confirm the transducer type and required adapter before ordering additional sonar hardware.
Two front-mounted MicroSDXC card slots provide removable storage capability for compatible marine chartplotter applications and data. The unit also includes 16GB of internal solid-state storage.
Using removable storage can provide additional flexibility for compatible charting, data-management and system functions. Card compatibility and supported data formats depend on the software and marine equipment being used.
The Axiom Pro 12 includes Bluetooth 4.0 and Wi-Fi using 802.11 b/g/n. These wireless interfaces provide connectivity options for supported marine electronics and compatible devices.
Wireless functions depend on the installed software and connected equipment. For a new installation, confirm the required wireless features and compatibility before planning the system around them.
A USB Micro B connection is provided for accessories. The product specification identifies this as the accessory connection for the Axiom Pro 12 system.
The supplied specifications identify both trunnion mounting and surface/flush mounting dimensions for the Axiom Pro range.
Allow additional clearance for cables and installation hardware when planning the helm cutout or mounting position.
The supplied specification includes dimensions and display information for the broader Axiom Pro range. It identifies the Axiom Pro 9, Axiom Pro 12 and Axiom Pro 16 alongside their respective display sizes.
| Model | Display size | Resolution listed in source | Aspect ratio |
|---|---|---|---|
| Axiom Pro 9 | 9.0 inches | 1280 x 720 HD | 16:9 |
| Axiom Pro 12 | 12.1 inches | 1280 x 800 WXGA | 16:9 |
| Axiom Pro 16 | 15.6 inches | 1920 x 1080 FHD | 16:10 |
The product being offered on this page is the Axiom Pro 12 RVX. The other model specifications are included only to clarify the range information contained in the supplied product data.
| Specification | Raymarine Axiom Pro 12 |
|---|---|
| Product type | Marine chartplotter / multifunction display |
| Display size | 12.1 inches diagonal |
| Display type | IPS |
| Resolution | 1280 x 800 WXGA |
| Aspect ratio | 16:9 |
| Viewing angle | 88° top, bottom, left and right |
| Color depth | 24-bit |
| Illumination | 1200 nits / 1200 cd/m² |
| Ethernet | 2 RayNet ports, 10/100/1000 Mbits/s |
| NMEA 0183 | 2 ports |
| NMEA 2000 | DeviceNet connector |
| External storage | 2 front-mounted MicroSDXC slots |
| Wireless | Bluetooth 4.0 and Wi-Fi 802.11/b/g/n |
| Internal storage | 16GB solid-state |
| Transducer connection | 25-pin RealVision type connector |
| Transducer adapter | A80490 required for CPT-S style transducers |
| USB | USB Micro B accessory connection |
Before installing the Axiom Pro 12 RVX, confirm the available helm space, selected mounting method, network requirements and transducer arrangement. The trunnion-mounted dimensions are different from the surface/flush-mounted dimensions, so the mounting approach should be selected before preparing the installation area.
For networked installations, plan RayNet Ethernet, NMEA 2000 and NMEA 0183 connections around the equipment already installed on the vessel. Also allow suitable access to the two front-mounted MicroSDXC slots and the required accessory connections.
If CPT-S style transducers are being used, the supplied specification identifies the A80490 adaptor cable as required. Verify the transducer and adapter combination before installation.
The Axiom Pro 12 RVX is intended for boat owners and marine electronics installations that need a 12.1-inch multifunction display with chartplotting, networking and compatible sonar connectivity.
Its combination of RayNet Ethernet, NMEA 2000, NMEA 0183, MicroSDXC storage, wireless connectivity and a dedicated RealVision transducer interface makes it suitable for a connected marine electronics installation where multiple systems need to work together.
If you are comparing the Axiom Pro 12 RVX with other marine GPS and chartplotter systems, consider display size and resolution, mounting dimensions, Ethernet networking, NMEA connectivity, storage, wireless features and transducer compatibility.
For questions about compatibility, availability or installation requirements, contact the Performance Engines team before ordering.
The supplied product specification identifies a 12.1-inch diagonal IPS display with a 1280 x 800 WXGA resolution and a 16:9 aspect ratio.
Yes. The product specifications identify a NMEA 2000 DeviceNet connector. The unit also provides two NMEA 0183 ports for compatible marine electronics connections.
The Axiom Pro 12 has two RayNet Ethernet ports supporting 10/100/1000 Mbits/s according to the supplied specification.
The supplied specification identifies a 25-pin RealVision type transducer connector. It also states that an A80490 adaptor cable is required for CPT-S style transducers.
Yes. The supplied product information lists Bluetooth 4.0 and Wi-Fi 802.11/b/g/n connectivity.
Yes. The supplied specifications provide both trunnion-mounted and surface/flush-mounted dimensions for the Axiom Pro 12. The flush-mounted dimensions are 222.8 mm high by 358.03 mm wide, with a depth of 233.4 mm including cables.
