Original price was: $2,000.00.$1,800.00Current price is: $1,800.00.
The Mercury 6HP FourStroke Outboard Engine is a compact portable outboard designed for small boats, tenders, inflatables, utility boats and other lightweight craft. Its single-cylinder four-stroke layout combines 6 horsepower with a manageable portable package, making it suitable where simple installation, manual starting and tiller steering are important.
Mercury’s current FourStroke 6HP model is offered with 15-inch short and 20-inch long shaft options, manual starting and tiller steering. Mercury describes the FourStroke portable range as compact, lightweight and easy to install, with an integrated on-engine fuel tank and the ability to connect to a remote fuel tank.
A 6 HP outboard is intended for boats where compact propulsion is more important than high horsepower. The Mercury FourStroke 6HP is particularly suited to small tenders, dinghies, aluminum boats, utility craft and similar lightweight applications. Mercury identifies its portable FourStroke engines as lightweight and compact for easy installation and operation.
The actual speed and carrying capability of a boat depend on hull design, total weight, propeller selection, water conditions and load. The engine should be matched to the boat manufacturer’s recommended horsepower range.
The published Mercury 6HP specification identifies a single-cylinder, 4-stroke engine with 123 cc displacement. Bore and stroke are listed as 59 mm × 45 mm, with a 5,000–6,000 rpm full-throttle range.
The four-stroke design provides a conventional gasoline engine layout for small marine applications. Regular maintenance of engine oil, fuel, cooling-water passages, spark plug and gearcase lubricant remains important for reliable operation.
Mercury’s current FourStroke 6HP product page identifies an integrated on-engine fuel tank and the ability to connect the engine to a remote fuel tank.
This gives the operator flexibility between compact self-contained operation and longer-range use with an appropriately configured external marine fuel tank. Always use a fuel system and fuel hose arrangement suitable for the engine and follow Mercury’s fuel requirements for the exact model year.

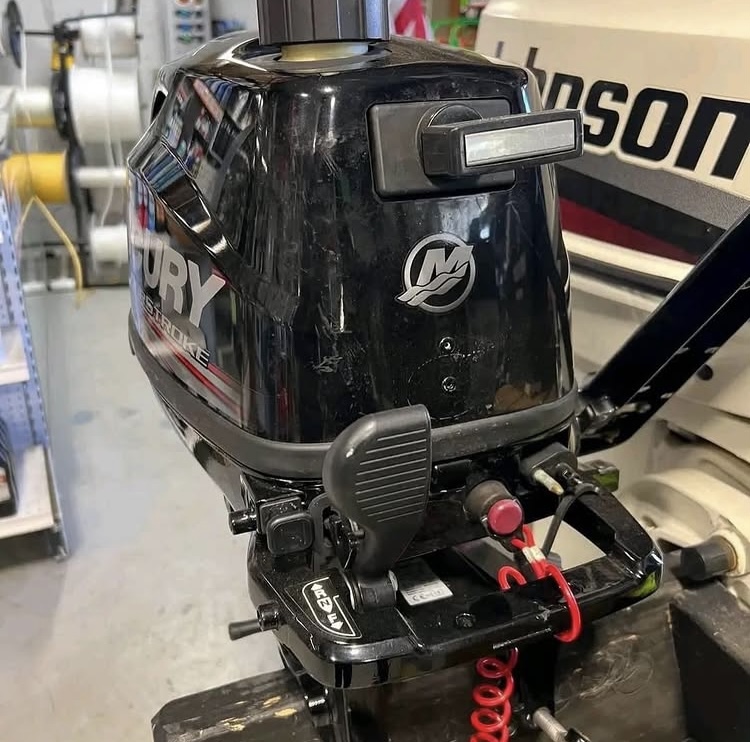

The current Mercury FourStroke 6HP is specified with manual starting and tiller steering.
A tiller-controlled portable outboard keeps the steering and throttle controls directly at the engine, which is useful on small boats where a remote-control installation is unnecessary. The manual recoil starter also avoids dependence on a starting battery for normal engine starting.
| Specification | Mercury FourStroke 6HP |
|---|---|
| Manufacturer | Mercury Marine |
| Power | 6 HP / 4.4 kW |
| Engine type | 4-stroke, single cylinder |
| Displacement | 123 cc / 7.5 cu in |
| Bore × stroke | 59 × 45 mm |
| Full-throttle range | 5,000–6,000 rpm |
| Fuel induction | 2-valve pushrod / overhead valve |
| Fuel system | Carbureted on the published 6HP specification |
| Recommended fuel | Unleaded gasoline; published Mercury specifications identify 87 octane minimum |
| Starting | Manual recoil |
| Steering | Tiller |
| Gear shift | Forward-Neutral-Reverse |
| Gear ratio | 2.15:1 |
| Cooling | Water-cooled with thermostat |
| Exhaust | Through propeller |
| Shaft lengths | 15 in. / 381 mm and 20 in. / 508 mm |
| Dry weight | Approximately 26 kg / 57 lb for the lightest current model |
| Trim positions | 6 |
| Shallow-water drive | Yes |
Mercury offers the FourStroke 6HP with 15-inch short-shaft and 20-inch long-shaft configurations.
Choosing the correct shaft length is important because the anti-ventilation plate and propeller need to sit at the appropriate depth relative to the boat’s transom. Measure the transom height before ordering rather than selecting shaft length based only on boat size.
The published Mercury 6HP specification identifies a water-cooled system with thermostat. The same specification lists six trim positions and shallow-water drive, giving the operator flexibility when operating in areas where water depth is limited.
Shallow-water operation does not eliminate the need to avoid submerged obstacles. Reduce speed appropriately and follow Mercury’s operating guidance whenever the engine is tilted or used in shallow water.
The Mercury 6HP uses a 2.15:1 gear ratio with Forward-Neutral-Reverse shifting. Published Mercury propeller information places the 6HP within the small-boat propeller range and specifies a 5,000–6,000 rpm wide-open-throttle operating range.
Propeller pitch should be selected for the actual boat and load. The correct propeller allows the engine to reach its specified operating range without excessive engine speed or overloading.
Published Mercury specifications identify unleaded gasoline with a minimum 87-octane rating for the 6HP and recommend Mercury FourStroke 10W-30 engine oil.
Fuel and oil specifications can vary by model year and market, so the owner’s manual supplied with the actual engine should take precedence over general specifications. Use marine-appropriate fuel storage and keep fuel contamination and water out of the system.
Earlier Mercury 4/5/6HP documentation identifies an optional lighting-coil charging system and a battery-charging rectifier. The exact charging equipment depends on the engine configuration.
If the outboard will be used to support onboard electrical equipment, verify whether the particular engine includes the relevant charging equipment before planning the boat’s electrical system.
Mercury’s published 6HP specifications identify an operator-warning system covering conditions including low oil pressure and over-rev protection.
These protections supplement, rather than replace, normal operator checks. Cooling-water flow, engine oil level, fuel condition and unusual sounds or vibrations should be monitored during operation.
The Mercury 6HP is appropriate for compatible small tenders, dinghies, inflatables, aluminum boats, jon boats, utility boats and lightweight fishing craft. Mercury also identifies portable FourStroke engines as suitable for small recreational boats and applications where easy handling matters.
Always check the boat manufacturer’s maximum rated horsepower, maximum engine weight and recommended transom height before installing an outboard.
Installation is straightforward for a portable outboard, but the engine still needs to be mounted securely on a suitable transom. Confirm the transom height, shaft length, clamp arrangement, steering clearance and propeller clearance before use.
The engine should be mounted according to Mercury’s installation instructions. Fuel connections, ventilation, fuel storage and emergency equipment should also comply with applicable marine requirements.
Routine maintenance on a small four-stroke outboard includes checking engine oil, inspecting the spark plug, maintaining cooling-water passages, checking the propeller and gearcase, and keeping the fuel system clean.
Follow Mercury’s maintenance schedule for the exact serial number and model year. If the engine is used in saltwater, rinse and flush it according to Mercury’s recommended procedure after operation.
The Mercury FourStroke 6HP produces 6 horsepower / 4.4 kW.
Yes. The Mercury 6HP is a four-stroke single-cylinder outboard with approximately 123 cc displacement in the published specification.
The current Mercury FourStroke 6HP is offered with 15-inch and 20-inch shaft options.
The current Mercury FourStroke 6HP product page specifies manual starting.
The current 6HP model uses tiller steering, placing the throttle and steering controls at the outboard.
The published specification gives a 2.15:1 gear ratio with Forward-Neutral-Reverse shifting.
Mercury’s current specification lists the lightest 6HP model at approximately 57 lb / 26 kg. Actual weight varies with shaft configuration.
It is designed for compatible small boats such as tenders, dinghies, inflatables, utility boats and lightweight recreational craft. The final suitability depends on the boat manufacturer’s horsepower and transom specifications.
The Mercury 6HP FourStroke Outboard Engine provides compact 6 HP propulsion in a portable package with tiller steering, manual starting, shallow-water capability and 15- or 20-inch shaft options. It is designed for small boats where straightforward operation and manageable weight are important.
Before ordering, confirm the required shaft length, boat horsepower rating, transom height, engine weight and intended operating conditions. For larger propulsion requirements, browse the outboard engines category at Performance Engines.
